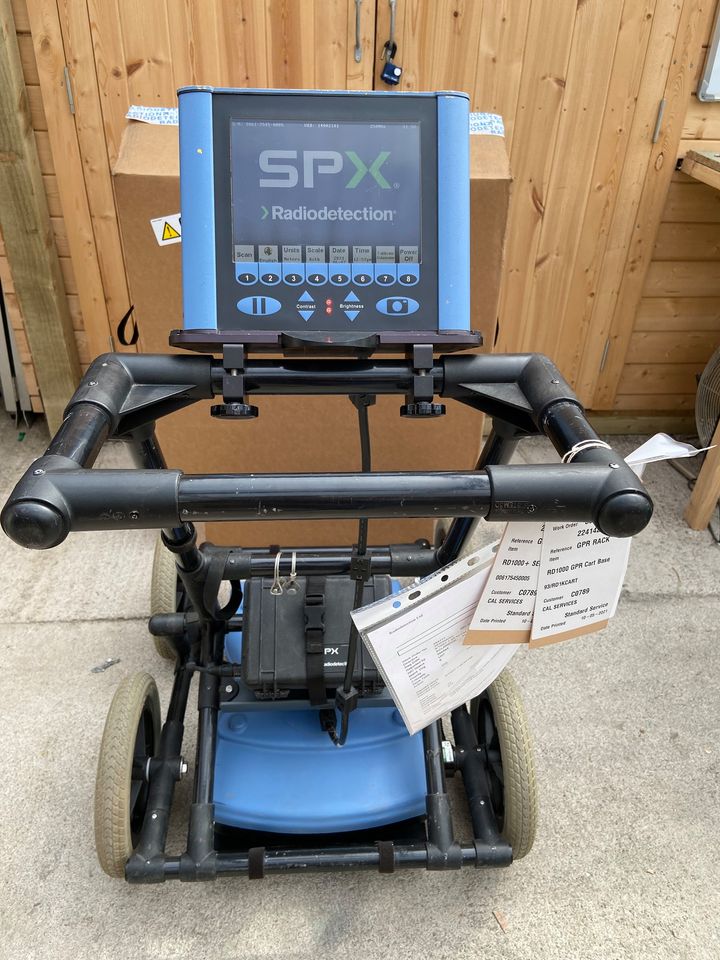

Radiodetection’s RD1000+ provides high-performance subsurface imaging for buried utilities in a rugged and competitively priced Ground Penetrating Radar system.

Designed for the utility industry, the RD1000+ features a wide-band sensor capable of detecting plastic and ceramic utilities at depths of up to 8m / 27’ deep. Once a utility is detected, the operator can simply reverse the cart to switch the RD1000+ into Locate Mode and determine the utility’s depth and position, simplifying utility identification.

Advanced DynaQ signal processing optimises signal quality, providing real-time image updates and high levels of detail. Integrated digital filters and color palettes allow operators to pick out even small utilities located in differing subsurface materials and soil types.

Operators can capture what’s on the display with a single touch. Locate images can be transferred to a PC from the Compact Flash card using the dedicated RD1000+ ImageView software to assist in documenting and analysing surveys.

Built from durable, weatherproof (IP66 rated) materials, and supported by a range of wheel types and accessories, the RD1000+ can operate across rough or smooth terrain. The modular design also makes the system quick to service and repair.

Weighing only 48lbs (22kg), the system is designed to be transported and assembled without requiring specialist equipment in less than two minutes. Key components can be packed in hard or soft travel cases, and a flight case is also available to protect an entire system during transportation.
