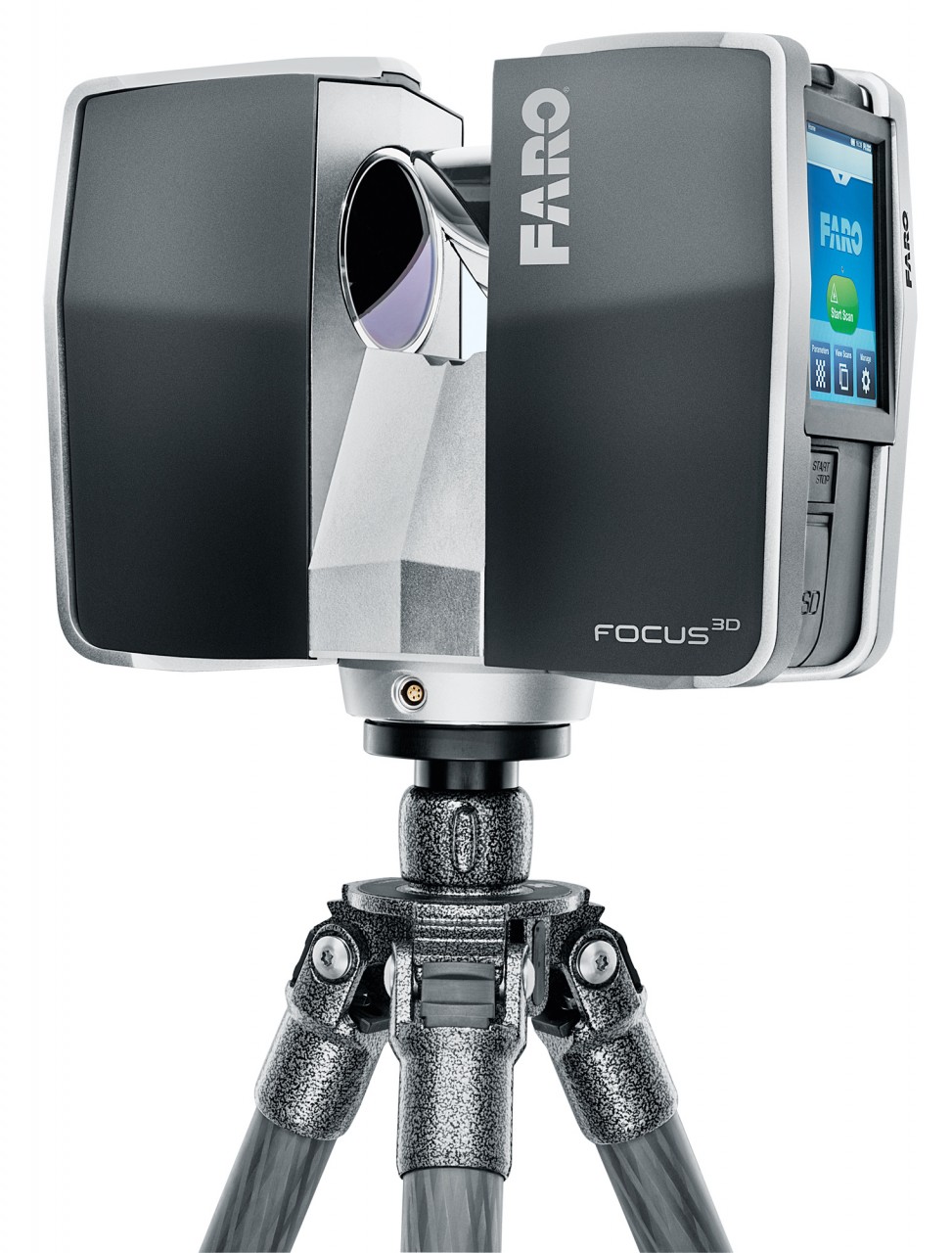

Loading... Please wait...BIG SALE FARO FOCUS 3D LASER SCANNER INSTRUMENT FOR SURVEYING
Features:
Benefits:
Specifications:
| Ranging unit | |
| Unambiguity interval: | 153.49m (503.58ft) |
| Range Focus3D S 120 | 0.6m - 120m indoor or outdoor with low ambient light and normal incidence to a 90% reflective surface |
| Measurement speed: | 122,000 / 244,000 / 488,000 / 976,000 points/sec |
| Ranging error: | ±2mm at 10m and 25m, each at 90% and 10% reflectivity |
| Ranging noise: | @10m - raw data: 0.6mm @ 90% refl. | 1.2mm @ 10% refl. @10m - noise compressed4 : 0.3mm @ 90% refl. | 0.6mm @ 10% refl. @25m - raw data: 0.95mm @ 90% refl. | 2.2mm @ 10% refl. @25m - noise compressed4 : 0.5mm @ 90% refl. | 1.1mm @ 10% refl. |
| Colour unit | |
| Resolution: | Up to 70 megapixel colour |
| Dynamic colour feature: | Automatic adaption of brightness |
| Multi-Sensor | |
| Dual axis compensator: | Levels each scan: Accuracy 0.015°; Range ±5° |
| Height sensor: | Via an electronic barometer the height relative to a fixed point can be detected and added to a scan |
| Compass: | The electronic compass gives the scan an orientation. A calibration feature is included. |
| Deflection unit | |
| Vertical field of view: | 300° |
| Horizontal field of view: | 360° |
| Vertical step size: | 0.009° (40,960 3D pixels on 360°) |
| Horizontal step size: | 0.009° (40,960 3D pixels on 360°) |
| Max. vertical scan speed: | 5,820rpm or 97Hz |
| Laser (Optical transmitter) | |
| Laser power (cw Ø): | 20mW (Laser class 3R) |
| Wavelength: | 905nm |
| Beam divergence: | Typical 0.19mrad (0.011° |
| Beam diameter at exit: | 3.0mm, circular |
| Data handling and control | |
| Data storage: | SD, SDHC™, SDXC™; 32GB |
| Scanner control: | Via touchscreen display and Wi-Fi |
| New Wi-Fi (WLAN) access: | Remote control, Scan Visualisation and download are possible on mobile devices with Flash® |
| General | |
| Power supply voltage: | 19V (external supply), 14.4V (internal battery) |
| Power consumption: | 40W and 80W respectively (while battery charges) |
| Battery life: | Up to 5 hours |
| Ambient temperature: | 5° - 40°C |
| Humidity: | Non-condensing |
| Cable connector: | Located in scanner mount |
| Weight: | 5.0kg |
| Size: | 240 x 200 x 100mm |
| Maintenance calibration: | Annual |
| Parallax-free: | Yes |
